Premium Stainless Steel Construction. Crafted from 430-grade 18-gauge stainless steel, ensuring durability and easy cleaning
-

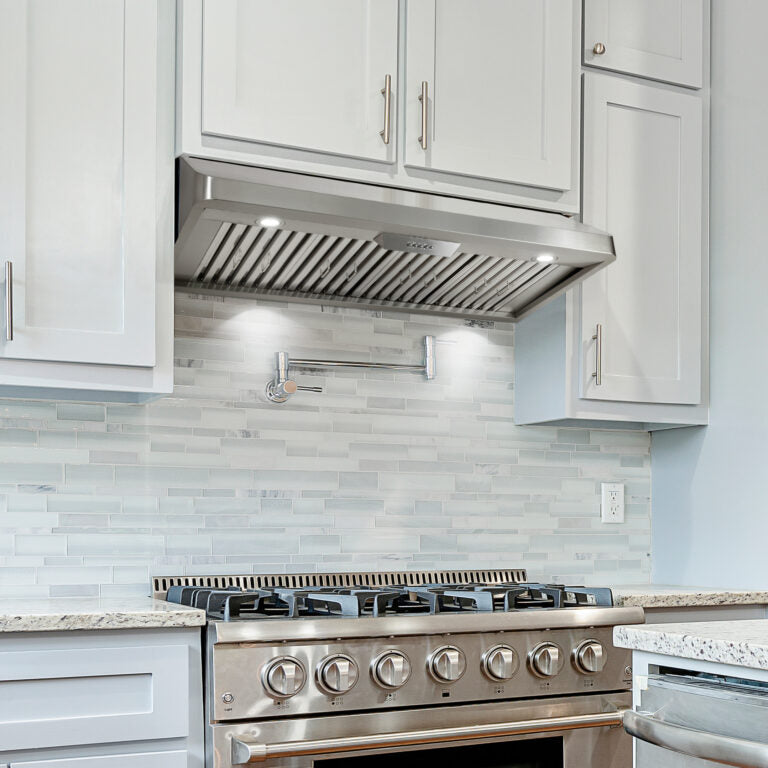

Professional Industrial Design. Seamlessly mountable under existing kitchen cabinets with seamless corners for a sleek look
-
Powerful Dual Motors. Dual motors deliver 500 CFM suction, efficiently handling multiple burners, pots, and pans
-
Low Noise Operation. Enjoy quiet operation with noise levels as low as 40 dB on the lowest fan speed, especially with rigid ducting (sold separately)
-
Easy Push Button Controls. Conveniently adjust fan speeds for high, medium, and low suction with simple push-button controls
-
Bright LED Lighting. Illuminate your cooktop with high-lumen energy-saving LED lights mounted under the hood for enhanced visibility
-
Durable Stainless Steel Filters. ARC FLOW permanent filters effectively capture grease and odors, dishwasher-safe and long-lasting
-
Ducted or Ductless Configuration. Comes configured for ducted use, with the option to convert to ductless/recirculating with the purchase of a Carbon Filter Kit CFK5
-
2-Year Limited Warranty. Enjoy peace of mind with a 2-year limited warranty
- Easy Installation. Includes a 3-prong 120V power cord for straightforward installation
-
ETL Listed Safety. Complies with North American safety standards for added assurance
PRODUCT SPECIFICATIONS:
| Dimensions |
47.2" W x 22" D x 10" H |
| Electrical Requirements |
120V/60Hz |
| Cutout Dimension |
48″ |
| Installation |
Under Cabinet |
| Air Movement |
500 CFM |
| Filter Type |
Washable Stainless Steel Baffle Filters |
| Vent Style |
Ducted/Ductless |
| Control Type |
Push Button Controls |
| Material |
Stainless Steel |
| Noise Level |
As Low As 40 dB |
| Lighting Type |
LED |
| Ductless Filter Kit |
CFK5 |
| Certification |
Complies with North American safety standards for added assurance |
