ZLINE 30 in. Convertible Vent Wall Mount Range Hood in Outdoor Approved Stainless Steel, 697-304-30

$1,259.99
$1,399.99 $1,259.99
Save $140.00
SKU: 697-304-30
Collections:

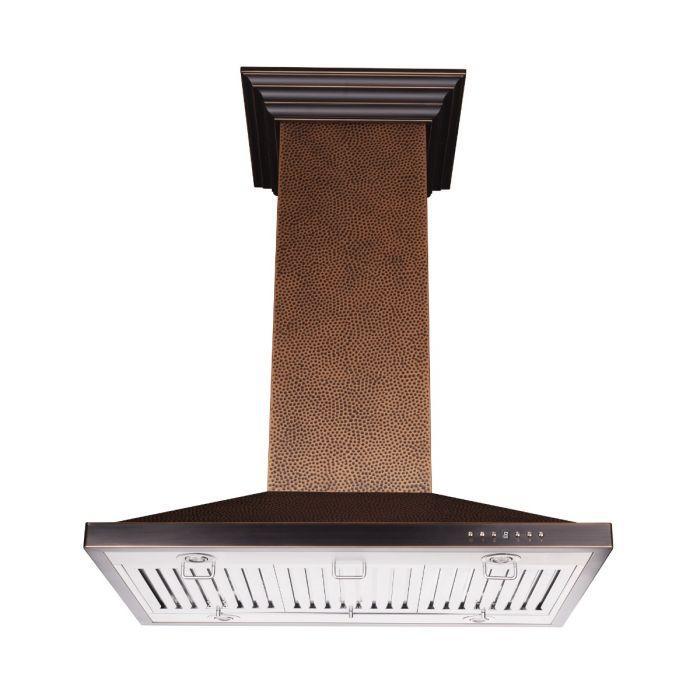

ZLINEZLINE 30 in. Hand Hammered Copper Island Range Hood, 8GL2Hi-30
ZLINE 30 in. Hand Hammered Copper Island Range Hood, 8GL2Hi-30

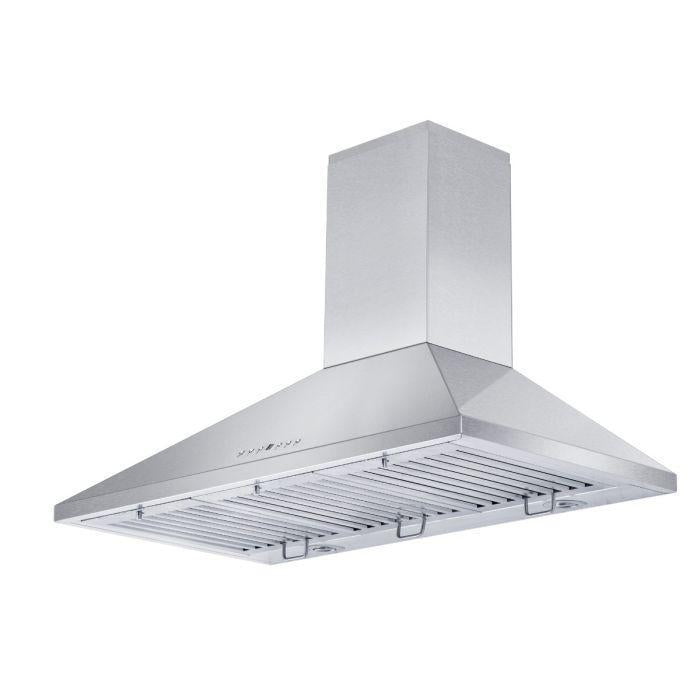

ZLINE 42 in. Convertible Vent Wall Mount Range Hood in Stainless Steel, KL2-42
ZLINEZLINE 42 in. Convertible Vent Wall Mount Range Hood in Stainless Steel, KL2-42
$1,259.99
$1,399.99 $1,259.99



ZLINE 30" Outdoor Stainless Steel Wall Range Hood, 697-304-30

OPTIONS & ACCESSORIES

Ductless/Recirculate Option - Yes, requires CF1 Filter (sold separately)
Ceiling Heights Options:
Less 8’ - Require Short Kit SK-667/697-304
8’ to 9' - No Ext or Short Kit required
9' to 10’ - Require Ext 1PCEXT-667/697-304
10' to 12’ - Require Ext 2PCEXT-667/697-304
Crown Molding(s) - NA

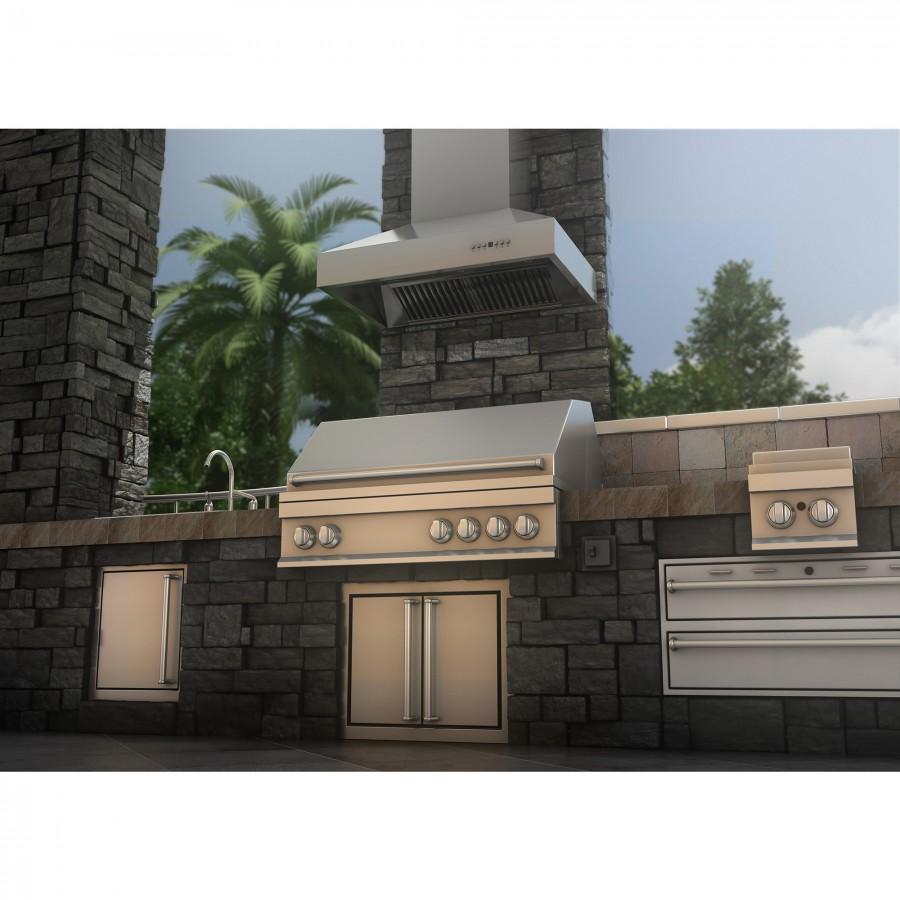

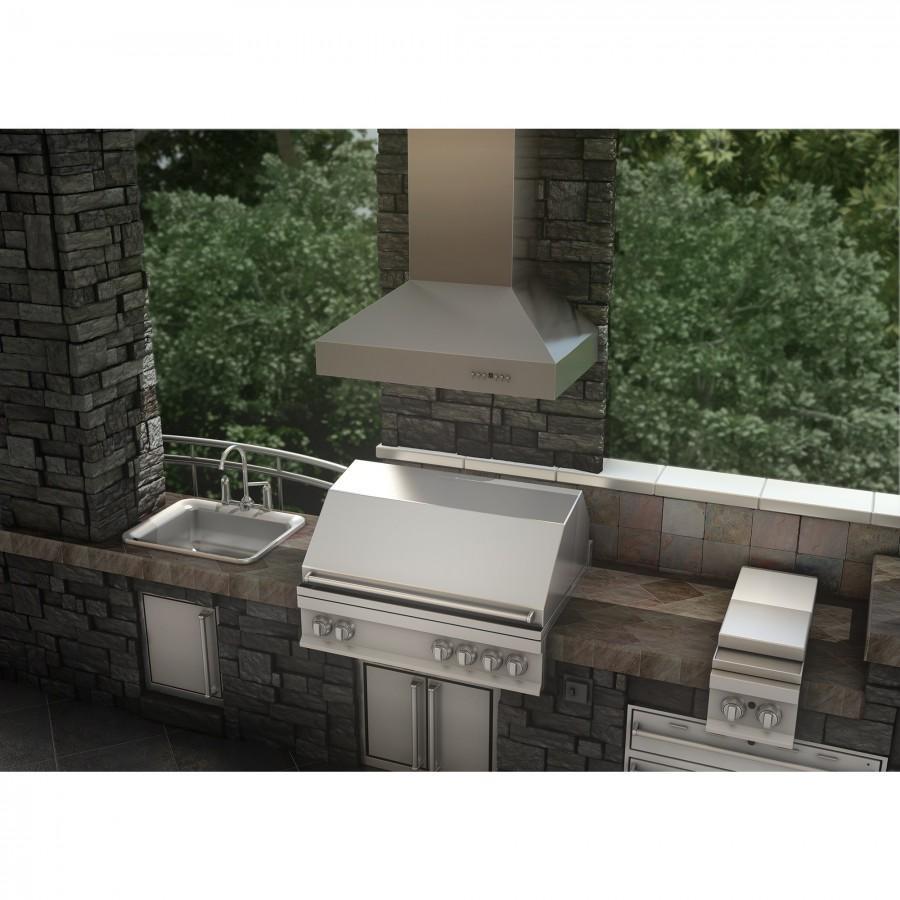

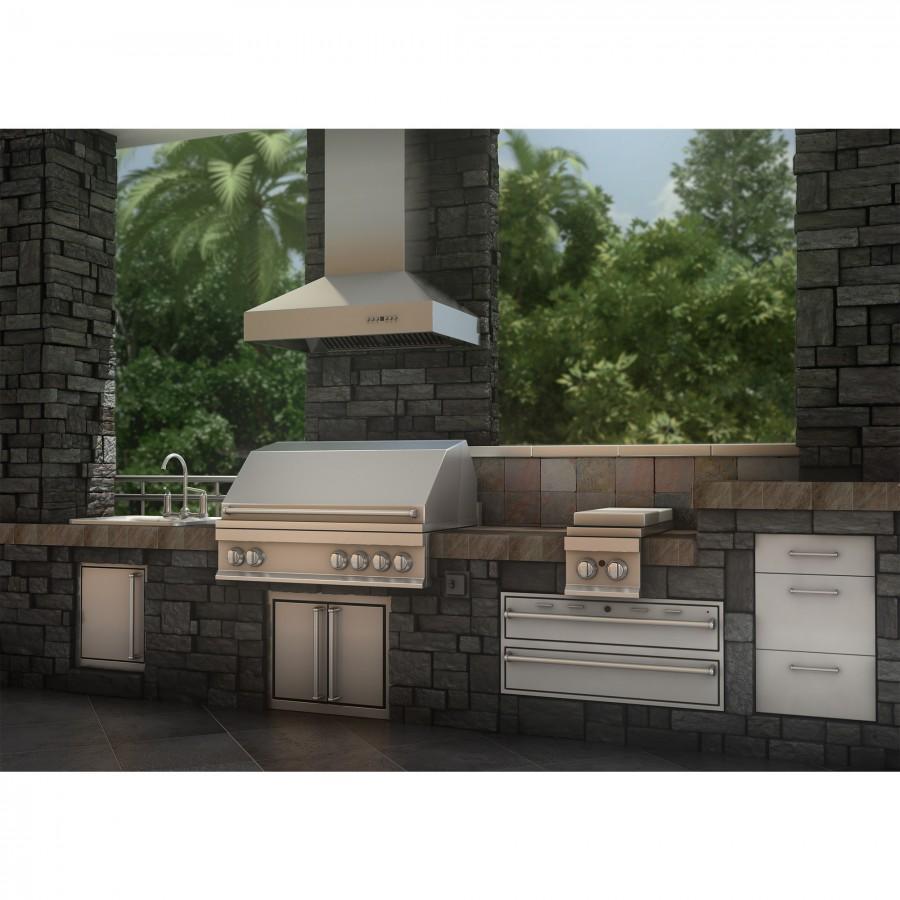

Certified Outdoor Use - Yes
Also available in 36"(697-304-36), 42"(697-304-42), 48”(697-304-48). 54"(697-304-54), 60"(697-304-60)



PRODUCT DESCRIPTION:

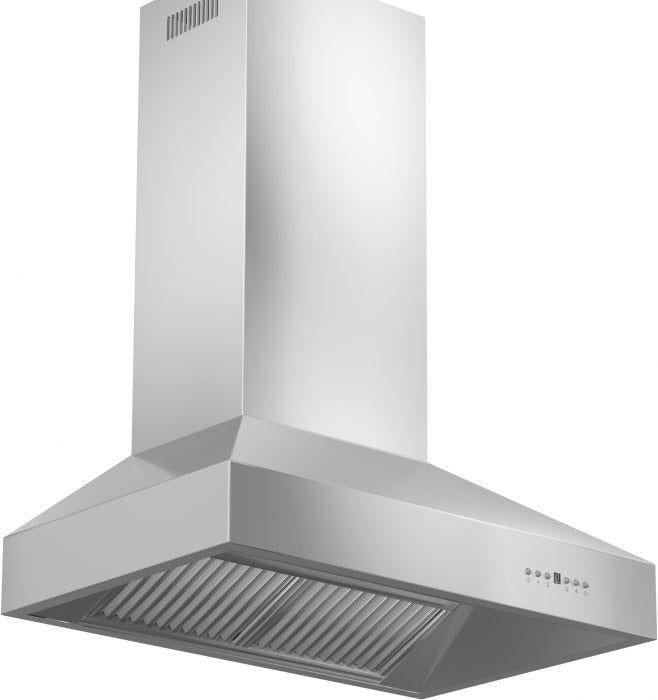

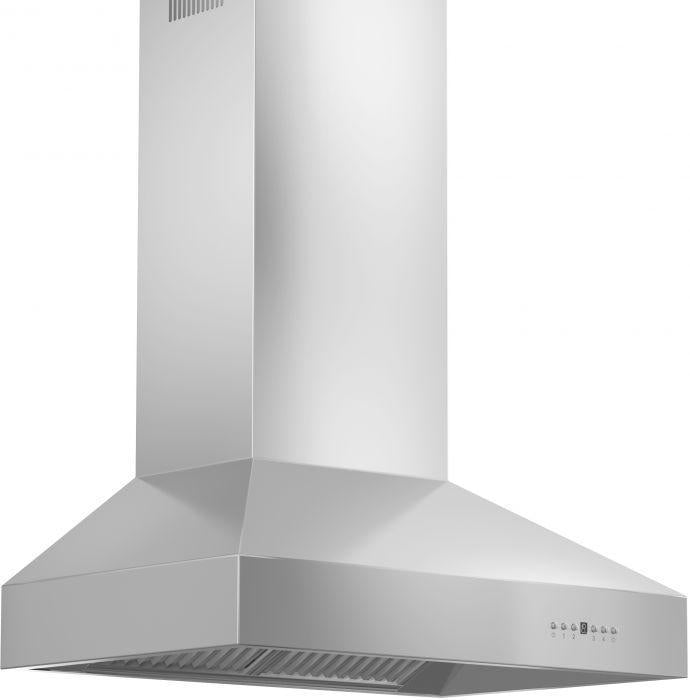

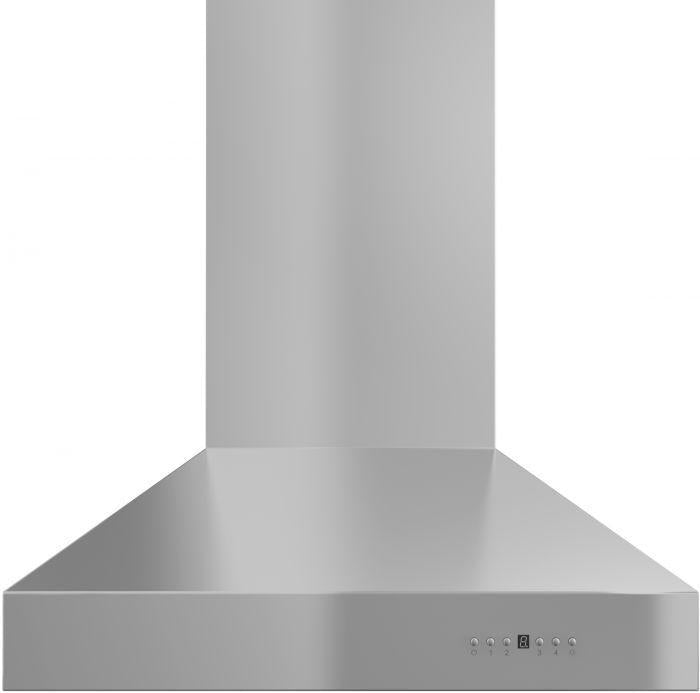

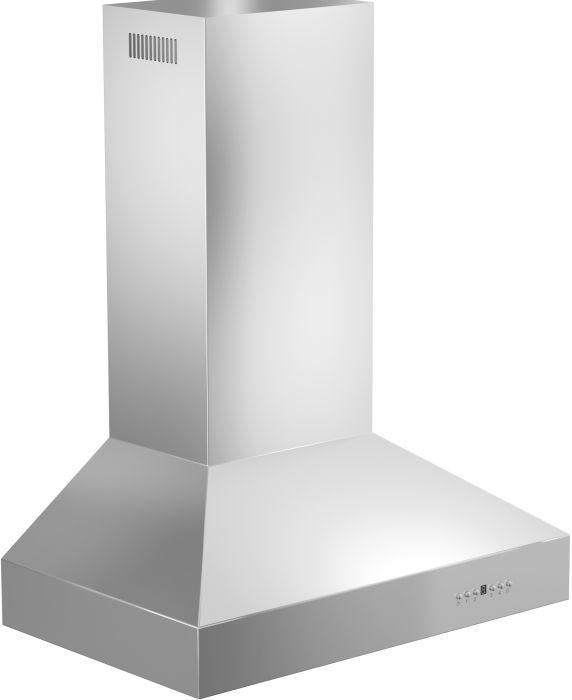

The ZLINE 697-304-30 is a 30-inch outdoor professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade, outdoor approved stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:
• Outdoor approved, 304-grade stainless steel

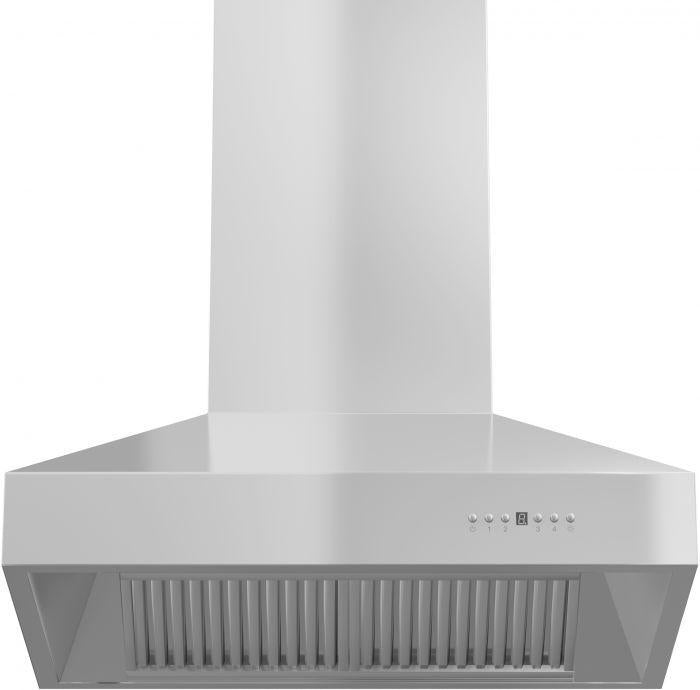

• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• High performance 4-speed motor with speeds of 120/240/320/400 CFM

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.







PRODUCT SPECIFICATIONS:


Brand: ZLINE Kitchen and Bath

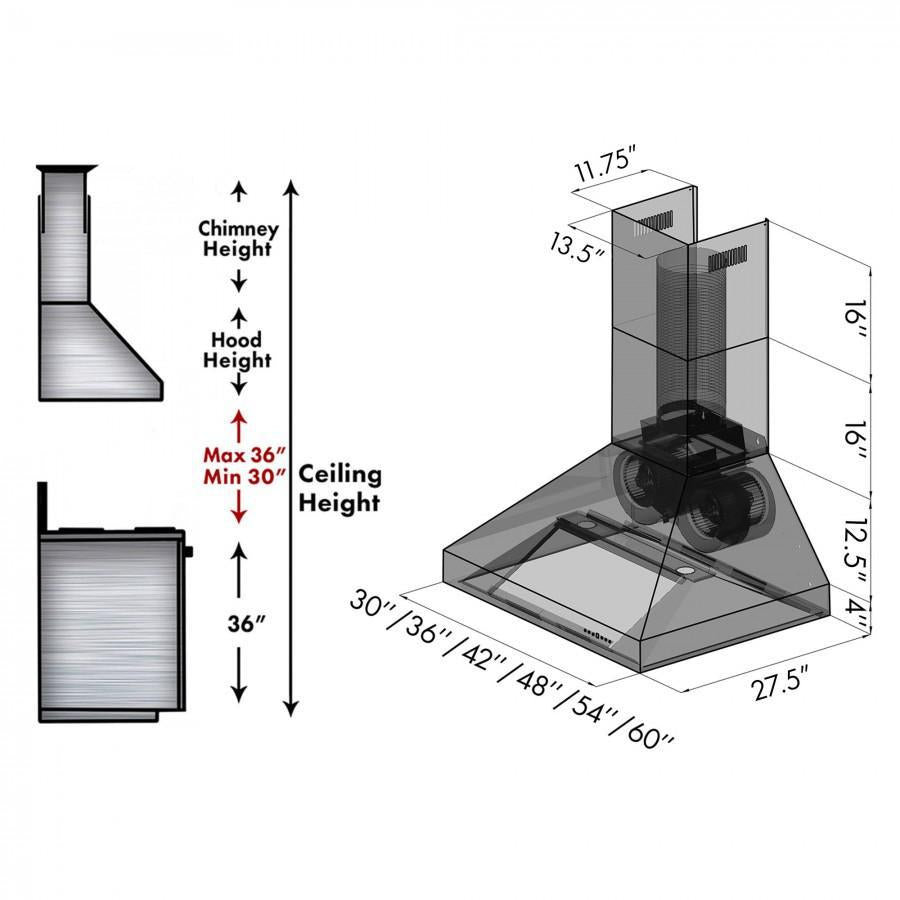

Dimension:

30" W x 27.5" D x 16.375" H
Chimney (Dimension): 13.5" W x 11.75" D x 16" H (x2) (Telescoping)

Chimney Short Kit and Extension(s) Available:
Short Kit (2-12") ~7-8 ft. Ceilings
1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
2 PC Extension (2-36") ~10-12 ft. Ceilings

Venting Size:

6" Outlet (Transition piece with backdraft damper to round ducting included)
Charcoal Filters (not included) available for ductless/recirculating option.
Airflow (Q/L/M/H):
280/460/670/900 (CFM)
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level:
30/42/51/55 (Decibels)
Voltage: 110V/60HZ
Motor:
High Performance 900 CFM/4-Speed Motor

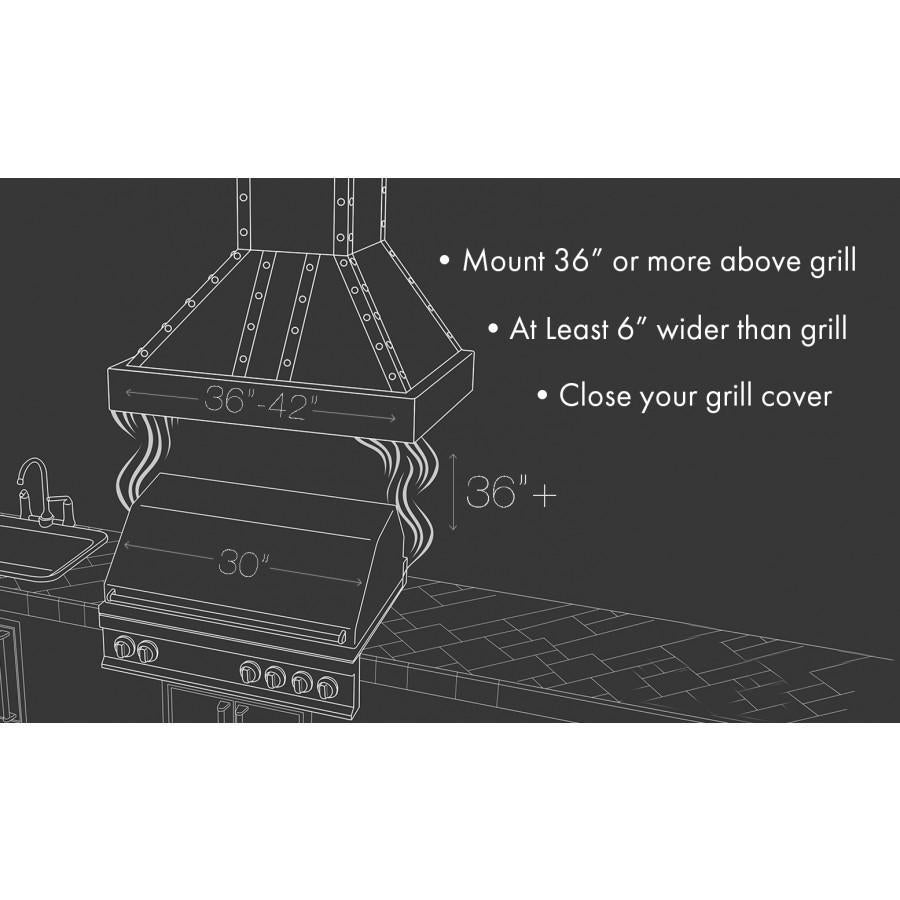

Mount Type: Wall Mount - RECOMMENDED INSTALLATION 36"-40" ABOVE GRILL
Speeds: 4 speeds
Control Type:
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters:
Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 19g #304 Stainless Steel
Warranty: 3 Year Parts Warranty
Features: Model No. 697-304-30 (ETL Listed)
UPC: 855187005832
Certifications: ETL Certified


INSTALLATION INSTRUCTIONS

Range Hood Decibel Levels:

ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation.

Chimney Sizing:

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
